Assess and Train in Natural Gait

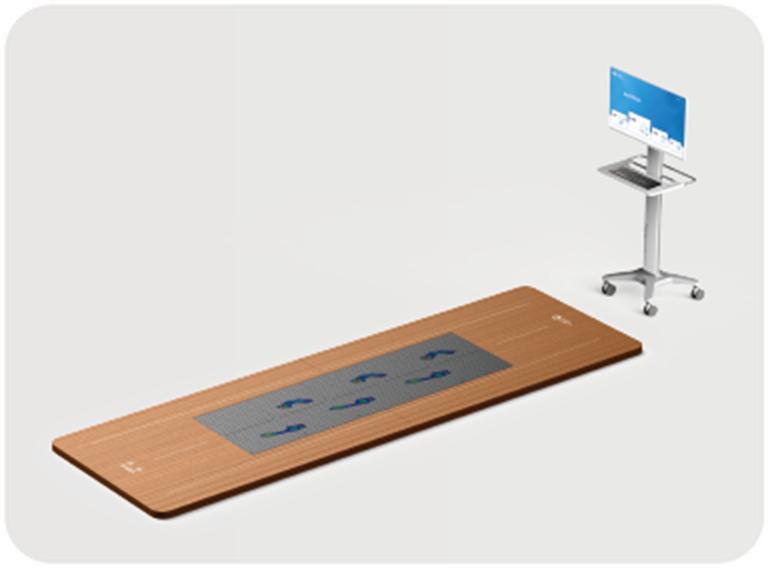

GaitMotus™ Walkway Gait Assessment & Training System
A walkway system that maps dynamic and static plantar pressure while standing or walking. A distributed pressure-sensor array, calibrated in real time by high-precision force sensors and paired with a biomechanics and rehabilitation knowledge base plus AI analytics, delivers fast, accurate assessment of gait, stepping, posture and balance — with gamified rehabilitation training and research-grade gait analysis. Walkway length is customizable.
- Sensor count
- 48,000
- Array density
- 4 points/cm²
- Real-time calibration
- 20 force sensors
- Test area
- 2000 × 600 mm (length customizable)
Plantar Pressure Distribution
How the pressure array renders the footprint, its peak regions and the centre-of-pressure path.
- Peak pressure
- —
- Contact area
- —
- Left / right
- —
- COP
- —
Report charts
Charts of the kind this product’s reports and analysis screens contain, animated in step with the preview above; their values are illustrative too.
This preview animates software-generated illustrative values so the data the system produces can be understood. No physical device is connected and no reading here is a measurement.
Core Capabilities
The capability points below are taken from the official product material for this product.
Signature 600 mm width lets subjects walk in a natural stance for more objective data
High density
48,000 pressure sensors with 20 force sensors for real-time calibration, eliminating pressure-sensor drift
Full-surface pressure calibration for consistent output
Test barefoot
shod, or with assistive devices across a wide range of scenarios
21 years of in-house R&D
ISO 13485 quality system; NMPA & CE registered
Typical Workflow
A generic assessment-and-training loop; test protocols and training contents follow the official product material.
Assess
Run the assessment protocol on the pressure array to capture the baseline.
Report
Review the assessment report and the indicators it derives.
Train
Run the interactive training scenarios matched to the assessment result.
Re-assess and compare
Repeat the assessment to track change against the baseline over time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test area | 2000 × 600 mm (length customizable) |
| Sensor type | Pressure array + high-precision force plate |
| Array density | 4 points/cm² |
| Sensor count | 48,000 |
| Real-time calibration | 20 force sensors |
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Plantar pressure & posture assessment, gait analysis
GAITMOTUSGAIT WALKWAY SYSTEMAL-600-G5 - SCENARIO 02
Balance assessment (standing / sit-to-walk / walking)
GAITMOTUSGAIT WALKWAY SYSTEMAL-600-G5 - SCENARIO 03
Balance training (standing / sit-to-walk / walking)
GAITMOTUSGAIT WALKWAY SYSTEMAL-600-G5
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet · AL-600-G5
Ready to restore balance?
Tell us your department, patient groups and room layout — we will propose a configuration and a quote.
