Standing Balance, Assessed and Trained

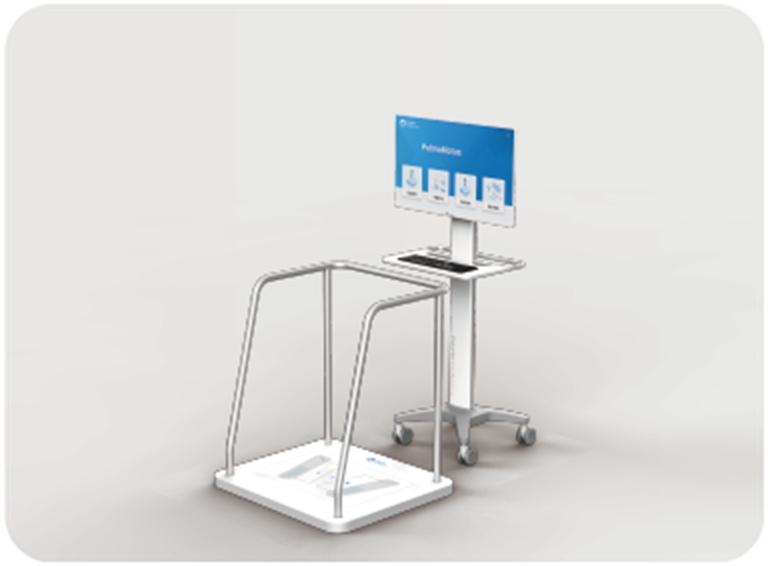

PelmaMotus™ Plantar Pressure Assessment & Training System
A plantar pressure distribution system that unifies assessment and training. A distributed pressure-sensor array, calibrated in real time by high-precision force sensors and paired with a biomechanics and rehabilitation knowledge base plus AI recognition, delivers fast, accurate evaluation of the foot, posture, balance and limits of stability in standing — alongside targeted, scenario-based interactive training.
- Array density
- 4 points/cm²
- Sensor count
- 9,600
- Real-time calibration
- 4 high-precision single-axis force sensors
- Test area
- 400 × 600 mm
Plantar Pressure Distribution
How the pressure array renders the footprint, its peak regions and the centre-of-pressure path.
- Peak pressure
- —
- Contact area
- —
- Left / right
- —
- COP
- —
Report charts
Charts of the kind this product’s reports and analysis screens contain, animated in step with the preview above; their values are illustrative too.
This preview animates software-generated illustrative values so the data the system produces can be understood. No physical device is connected and no reading here is a measurement.
Core Capabilities
The capability points below are taken from the official product material for this product.
High density
4 points/cm² across 9,600 pressure sensors, plus 4 high-precision single-axis force sensors for real-time calibration, addressing the linear force-output drift common to pure pressure sensors; national invention patent granted
600 mm extra-wide test area preserves a natural posture and reduces subjective interference for more objective data
Plantar pressure
balance assessment and balance training in one (barefoot / shod / assistive-device scenarios), with an open sync interface and raw-data export for secondary analysis
Full-surface air-bladder pressure calibration for consistent output (vs. spot calibration); national invention patent granted
21 years of in-house R&D
ISO 13485 quality system; NMPA & CE registered
Typical Workflow
A generic assessment-and-training loop; test protocols and training contents follow the official product material.
Assess
Run the assessment protocol on the pressure array to capture the baseline.
Report
Review the assessment report and the indicators it derives.
Train
Run the interactive training scenarios matched to the assessment result.
Re-assess and compare
Repeat the assessment to track change against the baseline over time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test area | 400 × 600 mm |
| Sensor type | Pressure array + high-precision force plate |
| Array density | 4 points/cm² |
| Sensor count | 9,600 |
| Real-time calibration | 4 high-precision single-axis force sensors |
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Plantar pressure & posture assessment
GAITMOTUSPLANTAR PRESSURE SYSTEMAL-600-B1-A - SCENARIO 02
Standing balance & limits-of-stability assessment
GAITMOTUSPLANTAR PRESSURE SYSTEMAL-600-B1-A - SCENARIO 03
Standing balance training
GAITMOTUSPLANTAR PRESSURE SYSTEMAL-600-B1-A
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet · AL-600-B1-A
