Balance from Sitting to Standing
STSMotus™ Sit-to-Stand Balance Assessment & Training System

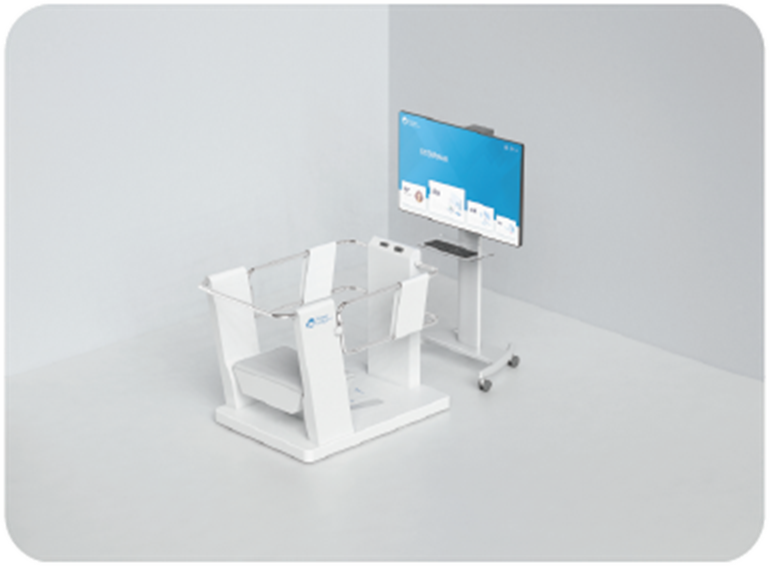

An integrated sit-to-stand system that measures body symmetry, balance and postural control in both seated and standing positions. A 12,000-point high-precision pressure-sensor array works with a motorized, height- and position-adjustable chair so the support surface can be tuned to each subject. Assessment and training run on one platform, with individualized rehabilitation programs to support postural control, balance and muscle coordination.
- Sensor count
- 12,000
- Chair
- Motorized height + fore/aft travel
- Array density
- Seat 1 point/cm² / Board 4 points/cm²
Sit-to-Stand: Seat and Standing Plate
How the seat imprint fades and the footprints fill in as body weight moves from the seat to the feet during one rise.
- Seat load
- —
- Foot load
- —
- Left / right
- —
- COP fore-aft
- —
Report charts
Charts of the kind this product’s reports and analysis screens contain, animated in step with the preview above; their values are illustrative too.
This preview animates software-generated illustrative values so the data the system produces can be understood. No physical device is connected and no reading here is a measurement.
Core Capabilities
The capability points below are taken from the official product material for this product.
Dual sensing
12,000 pressure sensors with high-precision force sensors for real-time calibration and detailed research data
Motorized chair adjusts height and fore/aft position to set the support surface
Assessment and training in one system
600 mm width preserves a natural posture for more objective data
Full-surface air-bladder pressure calibration for consistent output (vs. spot calibration); national invention patent granted
21 years of in-house R&D
ISO 13485 quality system; NMPA & CE registered
Typical Workflow
A generic assessment-and-training loop; test protocols and training contents follow the official product material.
Assess
Run the assessment protocol on the pressure array to capture the baseline.
Report
Review the assessment report and the indicators it derives.
Train
Run the interactive training scenarios matched to the assessment result.
Re-assess and compare
Repeat the assessment to track change against the baseline over time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test area | Seat 400 × 600 mm / Board 400 × 600 mm |
| Sensor type | Pressure array + high-precision force plate |
| Array density | Seat 1 point/cm² / Board 4 points/cm² |
| Sensor count | 12,000 |
| Chair | Motorized height + fore/aft travel |
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Plantar pressure & posture assessment
GAITMOTUSSIT-TO-STAND BALANCE SYSTEMAL-600-B2-E - SCENARIO 02
Balance assessment (sitting / sit-to-stand / standing)
GAITMOTUSSIT-TO-STAND BALANCE SYSTEMAL-600-B2-E - SCENARIO 03
Limits-of-stability assessment
GAITMOTUSSIT-TO-STAND BALANCE SYSTEMAL-600-B2-E - SCENARIO 04
Balance training (sitting / sit-to-stand / standing)
GAITMOTUSSIT-TO-STAND BALANCE SYSTEMAL-600-B2-E
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet · AL-600-B2-E
Ready to restore balance?
Tell us your department, patient groups and room layout — we will propose a configuration and a quote.
